Examples

Import

Use pkimport to import PK data from table to subject set.

using MetidaNCA, CSV, DataFrames;

pkdata2 = CSV.File(joinpath(dirname(pathof(MetidaNCA)), "..", "test", "csv",  "pkdata2.csv")) |> DataFrame

ds = pkimport(pkdata2, :Time, :Concentration, [:Subject, :Formulation]; dosetime = DoseTime(dose = 100, time = 0))

sort!(ds, :Subject)

DataSet: Pharmacokinetics subject
Length: 10
Subject 1: Subject => 1, Formulation => T,
Subject 2: Subject => 2, Formulation => R,
Subject 3: Subject => 3, Formulation => R,
Subject 4: Subject => 4, Formulation => R,
Subject 5: Subject => 5, Formulation => T,
Subject 6: Subject => 6, Formulation => T,
Subject 7: Subject => 7, Formulation => R,
Subject 8: Subject => 8, Formulation => R,
Subject 9: Subject => 9, Formulation => T,
Subject 10: Subject => 10, Formulation => R,

NCA

Perform NCA analysis with nca!. Access to result set is similar to DataFrame or any table. Find parameter list here.

dsnca = nca!(ds, adm = :ev, calcm = :lint)

dsnca[:, :AUClast]

10-element Vector{Float64}:
  9585.42175
 10112.175500000001
  5396.549749999999
  9317.83575
  9561.26
  6966.598000000001
  7029.5735
  7110.674499999999
  8315.080249999999
  5620.8945

Partial AUC

dsnca = nca!(ds, adm = :ev, calcm = :lint, partials = [(1, 7)])

dsnca[:, :AUC_1_7]

10-element Vector{Float64}:
  841.7427500000001
 1265.2779999999998
  521.33225
  924.9775
  934.97
  800.5465
  782.66975
  555.19825
  864.5880000000001
  678.70375

Result modification or custom parameter function

# Define modify! function for new parameter
function newparam(data)
    data.result[:AUChalf] = data.result[:AUClast] / 2
end

dsncanp = nca!(ds, modify!  = newparam)

dsncanp[1][:AUChalf]

4792.710875

Function newparam applyed to NCAResult.

Print output

nca!(ds[1], adm = :ev, calcm = :lint, verbose = 2);

  PK/PD subject NCA result
 -------------- -------------
     Parameter         Value
 -------------- -------------
          Rsqn           3.0
        Vzlast       3.08222
          Tmax           1.0
  AUMCinf_pred     1.30681e7
   MRTinf_pred       295.374
          ARsq      0.714769
       AUClast       9585.42
        MRTinf       293.162
   AUCinf_pred       44242.6
            LZ   -0.00338474
         LZint       5.00849
        Obsnum          16.0
         Clast       112.846
          Dose         100.0
          Tlag           0.0
         Cdose           0.0
       ⋮              ⋮
 -------------- -------------
               17 rows omitted

Plotting

using Plots

# plot 1

p = pkplot(ds; typesort = :Subject, pagesort = NoPageSort(), filter = Dict(:Formulation => "R"))

png(p, "plot1.png")

# plot 2

p = pkplot(ds; typesort = :Formulation, pagesort = NoPageSort(), legend = true)

png(p, "plot2.png")

# plot 3
# Plotting with elimination results (only for results)

p = pkplot(dsnca; elim = true, ls = true)

png(p[1], "plot3.png")

# plot 4

p = pkplot(ds; typesort = :Subject, pagesort = :Formulation)

png(p[1], "plot4.png")

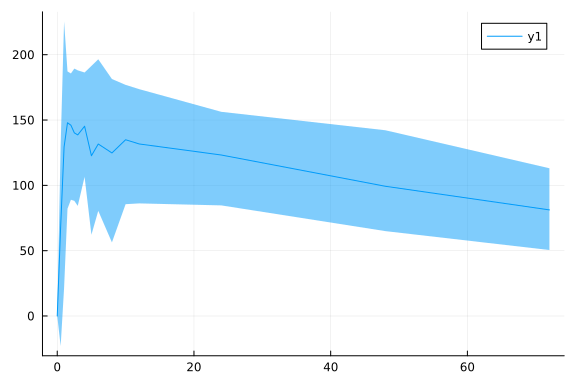

# plot 5

p = vpcplot(ds)

png(p, "vpcplot.png")

"vpcplot.png"

Plot 1

Plot 2

Plot 3

Plot 4

Plot 5

MetidaNCA.mergeplots!(plt, plts...)

If Plots.jl installed? you can use MetidaNCA.mergeplots! function to merge 2 or more plots. This function not exported.

MetidaNCA.mergeplots!(plt, plts...)

Set dose time

You can set dose time with setdosetime! for whole subject set or for selected subjects.

dt = DoseTime(dose = 200, time = 0)

setdosetime!(ds, dt, Dict(:Formulation => "R"))

dsnca = nca!(ds)

dsnca[:, :Dose]

10-element Vector{Float64}:
 100.0
 200.0
 200.0
 200.0
 100.0
 100.0
 200.0
 200.0
 100.0
 200.0

Set range for elimination

By default no exclusions or range to calculate elimination parameters specified. With setkelrange! elimination range and exclusion can be specified for whole subject set or for any selected subjects. The observation number is used to indicate the boundaries of the elimination calculation and the observations to be excluded.

kr =  ElimRange(kelstart = 4, kelend = 12, kelexcl = Int[5,6])

setkelrange!(ds, kr, [1,2,3])

dsnca = nca!(ds)

p = pkplot(dsnca[1]; elim = true)

png(p, "plot5.png")

getkeldata(dsnca[1])

Elimination table:
 ------------ ---------- ------------ --------- ---------- ------------- ---
  Strat time   End time            a         b         r²   Adjusted r²   N
 ------------ ---------- ------------ --------- ---------- ------------- ---
         1.5       10.0   -0.0127605   5.00469   0.128943     -0.045268   7
 ------------ ---------- ------------ --------- ---------- ------------- ---

Plot 5

Without import

You can use nca for NCA analysis directly from tabular data.

dsnca = nca(pkdata2, :Time, :Concentration, [:Subject, :Formulation]; dosetime = DoseTime(dose = 100, time = 0))

sort!(dsnca, :Subject)

dsnca[:, :AUClast]

10-element Vector{Float64}:
  9585.42175
 10112.175500000001
  5396.549749999999
  9317.83575
  9561.26
  6966.598000000001
  7029.5735
  7110.674499999999
  8315.080249999999
  5620.8945

PD subject

Use pdimport to import PD data from table to subject set.

Import & NCA

pddata = CSV.File(joinpath(dirname(pathof(MetidaNCA)), "..", "test", "csv",  "pddata.csv")) |> DataFrame

pd =  MetidaNCA.pdimport(pddata, :time, :obs, :subj; bl = 1.5, th = 5.0)

MetidaNCA.nca!(pd[1])

  PK/PD subject NCA result
 ----------- ---------
  Parameter     Value
 ----------- ---------
       Tmax       5.0
       TBBL    3.2381
       Rmin       0.0
    TIMEBTW       4.0
     AUCBTW   11.7333
     AUCBBL   1.80952
    AUCNETT    -19.35
     Obsnum      13.0
     AUCABL   13.9595
       TATH    1.7619
         BL       1.5
     AUCBTH   21.5762
       TABL    5.7619
       TBTH    7.2381
         TH       5.0
       Rmax       8.0
     AUCATH   2.22619
    AUCNETB     12.15
 ----------- ---------

PD subject plotting

p = MetidaNCA.pkplot(pd[1], drawth = true, drawbl = true)

png(p, "plot6.png")

# Plot DoseTime (can be used for PK plots)

dt = DoseTime(dose = 200, time = 1.5)
setdosetime!(pd, dt)

p = MetidaNCA.pkplot(pd[1], drawdt = true)


png(p, "plot7.png")

"plot7.png"

Plot 6

Plot 7
